Model Context Protocol (MCP)

Model Context Protocol (MCP) is an open-source framework developed by Anthropic to standardize how AI systems, particularly large language models (LLMs), interact with external tools and data sources.

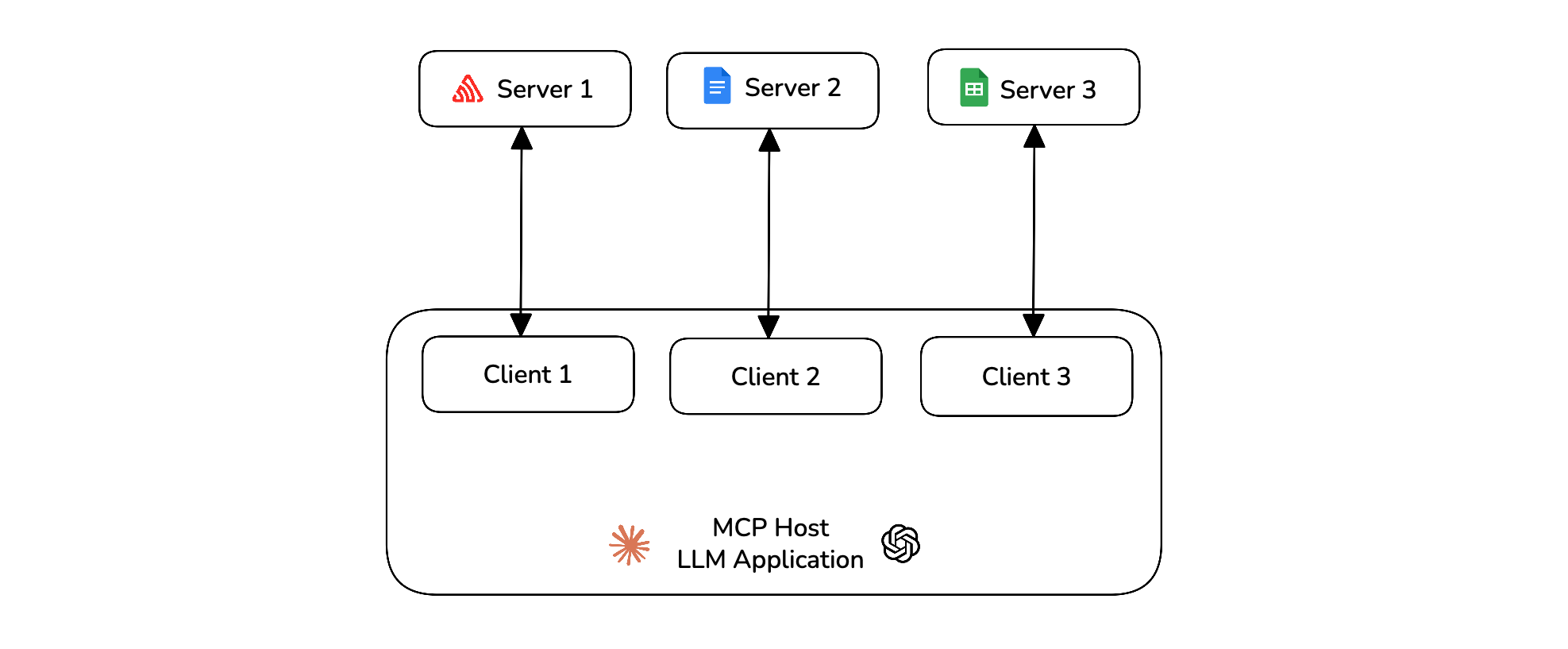

Architecture

The MCP architecture is composed of three main components:

• Host – The AI application that coordinates and manages one or more MCP clients.
• Client – Maintains a one-to-one connection with a server and retrieves context from it for the host to use.
• Server – Paired with a single client, providing the context the client passes to the host.

For example, Claude acts as the MCP host. When Claude connects to an MCP server such as Google Sheets, the Claude runtime instantiates an MCP client that maintains a dedicated connection to that server. When Claude subsequently connects to another MCP server, such as Google Docs, it instantiates an additional MCP client to maintain that second connection. This preserves a one-to-one relationship between MCP clients and MCP servers, with the host (Claude) orchestrating multiple clients.

Primitives

deepeval adheres to MCP primitives. You'll need to use these primitives to create an MCPServer class in deepeval before evaluation.

There are three core primitives that MCP servers can expose:

• Tools: Executable functions that LLM apps can invoke to perform actions
• Resources: Data sources that provide contextual information to LLM apps
• Prompts: Reusable templates that help structure interactions with language models

You can get all three primitives from mcp's ClientSession:

main.py

from mcp import ClientSession

session = ClientSession(...)

# List available tools
tool_list = await session.list_tools()
resource_list = await session.list_resources()
prompt_list = await session.list_prompts()

info

It is the MCP server developer's job to expose these primitives for you to leverage for evaluation. This means that you might not always have control over the MCP server you're interacting with.

MCP Server

The MCPServer class is an abstraction provided by deepeval to contain information about different MCP servers and the primitives they provide which can be used during evaluations.

Here's how how to create a MCPServer instance:

main.py

from deepeval.test_case import MCPServer

mcp_server = MCPServer(
    server_name="GitHub",
    transport="stdio",
    available_tools=tool_list.tools, # get from ClientSession
    available_resources=resource_list.resources, # get from ClientSession
    available_prompts=prompt_list.prompts # get from ClientSession
)

The MCPServer accepts FIVE parameters:

• server_name: an optional string you can provide to store details about your MCP server.
• [Optional] transport: an optional literal that stores on the type of transport your MCP server uses. This information does not affect the evaluation of your MCP test case.
• [Optional] available_tools: an optional list of tools that your MCP server enables you to use.
• [Optional] available_prompts: an optional list of prompts that your MCP server enables you to use.
• [Optional] available_resources: an optional list of resources that your MCP server enables you to use.

tip

You need to make sure to provide the .tools, .resources and .prompts from the list method's response. They are each of type Tool, Resource and Prompt respectively from mcp.types and they are standardized from the official MCP python sdk.

MCP At Runtime

During runtime, you'll inevitably be calling your MCP server which will then invoke tools, prompts, and resources. To run evaluation on MCP powered LLM apps, you'll need to format each of these primitives that were called for a given input.

Tools

Provide a list of MCPToolCall objects for every tool your agent invokes during the interaction. The example below shows invoking a tool and constructing the corresponding MCPToolCall:

main.py

from mcp import ClientSession
from deepeval.test_case import MCPToolCall

session = ClientSession(...)

# Replace with your values
tool_name = "..."
tool_args = "..."

# Call tool
result = await session.call_tool(tool_name, tool_args)

# Format into deepeval
mcp_tool_called = MCPToolCall(
    name=tool_name,
    args=tool_args,
    result=result,
)

The result returned by session.call_tool() is a CallToolResult from mcp.types.

Resources

Provide a list of MCPResourceCall objects for every resource your agent reads. The example below shows reading a resource and constructing the corresponding MCPResourceCall:

main.py

from mcp import ClientSession
from deepeval.test_case import MCPResourceCall

session = ClientSession(...)

# Replace with your values
uri = "..."

# Read resource
result = await session.read_resource(uri)

# Format into deepeval
mcp_resource_called = MCPResourceCall(
    uri=uri,
    result=result,
)

The result returned by session.read_resource() is a ReadResourceResult from mcp.types.

Prompts

Provide a list of MCPPromptCall objects for every prompt your agent retrieves. The example below shows fetching a prompt and constructing the corresponding MCPPromptCall:

main.py

from mcp import ClientSession
from deepeval.test_case import MCPPromptCall

session = ClientSession(...)

# Replace with your values
prompt_name = "..."

# Get prompt
result = await session.get_prompt(prompt_name)

# Format into deepeval
mcp_prompt_called = MCPPromptCall(
    name=prompt_name,
    result=result,
)

The result returned by session.get_prompt() is a GetPromptResult from mcp.types.

Evaluating MCP

You can evaluate MCPs for both single and multi-turn use cases. Evaluating MCP involves 4 steps:

• Defining an MCPServer, and
• Piping runtime primitives data into deepeval
• Creating a single-turn or multi-turn test case using these data
• Running MCP metrics on the test cases you've defined

Single-Turn

The LLMTestCase is a single-turn test case and accepts the following optional parameters to support MCP evaluations:

main.py

from deepeval.test_case.mcp import (
    MCPServer,
    MCPToolCall,
    MCPResourceCall,
    MCPPromptCall
)
from deepeval.test_case import LLMTestCase
from deepeval.metrics import MCPUseMetric
from deepeval import evaluate

# Create test case
test_case = LLMTestCase(
    input="...", # Your input
    actual_output="..." # Your LLM app's output
    mcp_servers=[MCPServer(...)],
    mcp_tools_called=[MCPToolCall(...)],
    mcp_prompts_called=[MCPPromptCall(...)],
    mcp_resources_called=[MCPResourceCall(...)]
)

# Run evaluations
evaluate(test_cases=[test_case], metrics=[MCPUseMetric])

Typically all MCP parameters in a test case is optional. However if you wish to use MCP metrics such as the MCPUseMetric, you'll have to provide some of the following:

• mcp_servers — a list of MCPServers
• mcp_tools_called — a list of MCPToolCall objects that your LLM app has used
• mcp_resources_called — a list of MCPResourceCall objects that your LLM app has used
• mcp_prompts_called — a list of MCPPromptCall objects that your LLM app has used

You can learn more about the MCPUseMetric here.

Multi-Turn

The ConversationalTestCase accepts an optional parameter called mcp_server to add your MCPServer instances, which tells deepeval how your MCP interactions should be evaluated:

main.py

from deepeval.test_case import ConversationalTestCase
from deepeval.test_case.mcp import MCPServer
from deepeval.metrics import MultiTurnMCPMetric
from deepeval import evaluate

test_case = ConversationalTestCase(
    turns=turns,
    mcp_servers=[MCPServer(...), MCPServer(...)]
)

evaluate(test_cases=[test_case], metrics=[MultiTurnMCPMetric()])

Click here to see how to set MCP primitives for turns at runtime

To set primitives at runtime, the Turn object accepts optional parameters like mcp_tools_called, mcp_resources_called and mcp_prompts_called, just like in an LLMTestCase:

from deepeval.test_case.mcp import MCPServer
from deepeval.test_case.mcp import (
    MCPServer,
    MCPToolCall,
    MCPResourceCall,
    MCPPromptCall
)

turns = [
    Turn(role="user", content="Some example input"),
    Turn(
        role="assistant",
        content="Do this too", # Your content here for a tool / resource / prompt call
        mcp_tools_called=[MCPToolCall(...)],
        mcp_resources_called=[MCPResourceCall(...)],
        mcp_prompts_called=[MCPPromptCall(...)],
    )
]

test_case = ConversationalTestCase(
    turns=turns,
    mcp_servers=[MCPServer(...)],
)

✅ Done. You can now use the MCP metrics to run evaluations on your MCP based application.
